HRC36778

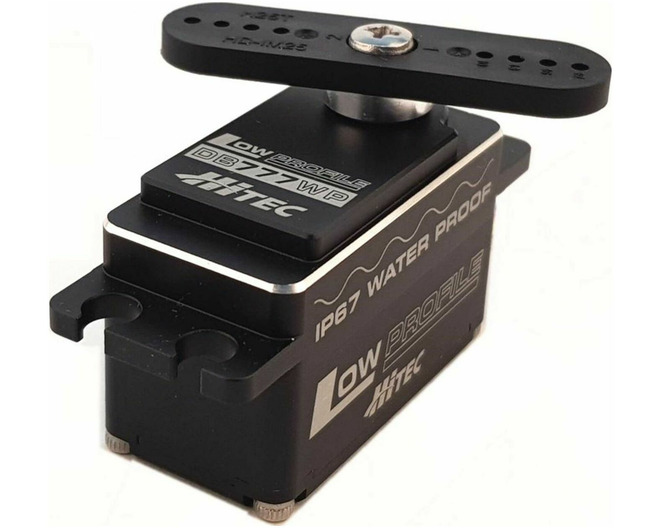

32-Bit BL Low Profile Metal Case waterproof Servo DB777WP $199.99
Hitec is excited to introduce the new addition to our D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear! Look to us when you need unprecedented engineering, and the ultimate reliability!
FEATURES:
Voltage Range is 4.8V - 8.4VFull Programmability
IP-67 Waterproof Rated
Ultra Efficient brushless Motor
32-Bit MCU Technology / 4096 Resolution
Smart Sense Technology for Servo Analytics
High Response, High Resolution Circuitry
Full Metal Case
1M Cycle, Long-Life Potentionmeter
H25T -Industry Standard Output Spline
Compatible with Fully Charged 2S LiPo Batteries
Performance
SPECIFICATIONS:
Operating Voltage Range (Volts DC) 6.0V ~ 7.4VSpeed (Second @ 60) 0.08 ~ 0.06
Maximum Torque Range oz. / in. 111 ~ 153
Maximum Torque Range kg. / cm. 8.0 ~ 11.0
Current Draw at Idle 35mA / 40mA
No Load Operating Current Draw 250mA / 350mA
Stall Current Draw 3500mA / 4500mA
Dead Band Width 1usec
Physical
SPECIFICATIONS:
Dimensions (Inches) 1.61 x 0.83 x 1.04 in. Dimensions (Metric) 41.0 x 21.0 x 26.5
Weight (Ounces) 2.40
Weight (Gram) 68.0
Circuit Type 32bit Programable Digital
Motor Type brushless
Gear Material Metal
Bearing Type brushless
Output Shaft (type / mm) H25T
Case Material Aluminum
Dust / Water Resistance IP-67 Rated
Connector Gauge (AWG) / Strand Count 20AWG / 80
