HRC35565S

Premium Digital High Voltage Servo HS-5565MH $101.99

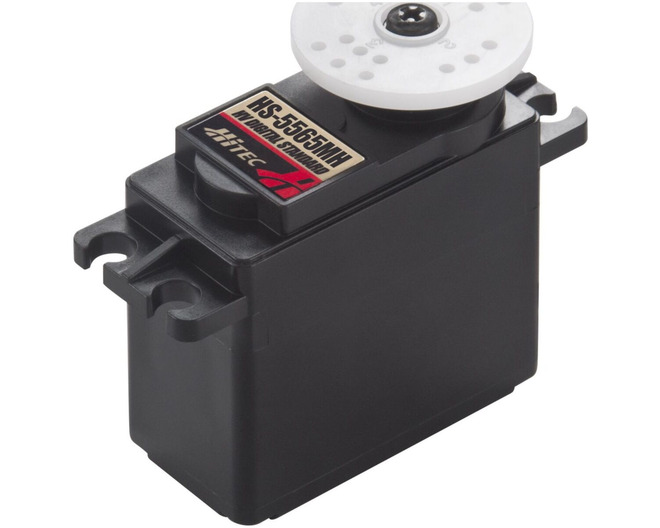

This is the Hitec HS-5565MH High Voltage, High Speed Digital Servo.

FEATURES:

Ideal for 1/10 scale touring cars, buggies and short course vehicles,
helicopters up to .90 size, and sport to high performance aircraft
up to 25 percent
Heavy duty metal gears and dual ball bearings
Coreless motor
Two year limited warranty through Hitec beginning at date of purchase

YOU WILL RECEIVE:

HS-5565MH Servo with 0.94" (24mm) Round Servo Horn, 1.8" (45mm) Round
Servo Horn, 2.3" (59mm) Double Sided Servo Arm, 1.1" (27mm) Single
Sided Servo Arm, 1.6" (42mm) Four Point Horn, Mounting Hardware and
Instructions

SPECIFICATIONS:

Operating Voltage: 6.0 - 7.4V DC
6.0V 7.4V
Speed: 0.11 sec/60° 0.09 sec/60°
Torque: 153 oz-in (11 kg-cm) 194 oz-in (14 kg-cm)
Size: 1.57 x 0.78 x 1.49" (39.8 x 19.8 x 37.8mm)
Weight: 2.10oz (60g)
Wire Length: 11.8" (30mm)
Wire Gauge: 25AWG
Operating Temperature Range: -4 to 140°F
Idle Current: 4mA
Stall Current: 2100mA @ 6.0V, 2700mA @ 7.2V
Potentionmeter Type: 4 slider 1M cycle

COMMENTS:

A note on coreless motors-a conventional servo motor has a steel core
armature wrapped with wire that spins inside the magnets. In a
Coreless design, the armature uses a wire mesh that forms a cup
that spins around the outside of the magnet. This arrangement is
much lighter resulting in smoother operation and faster response
time.

jxs 04/09/12
ir/jxs
&

This part is available for sale or distribution
through Hobby Etc., Inc in Nashua, New Hampshire, USA
