HRC33488S

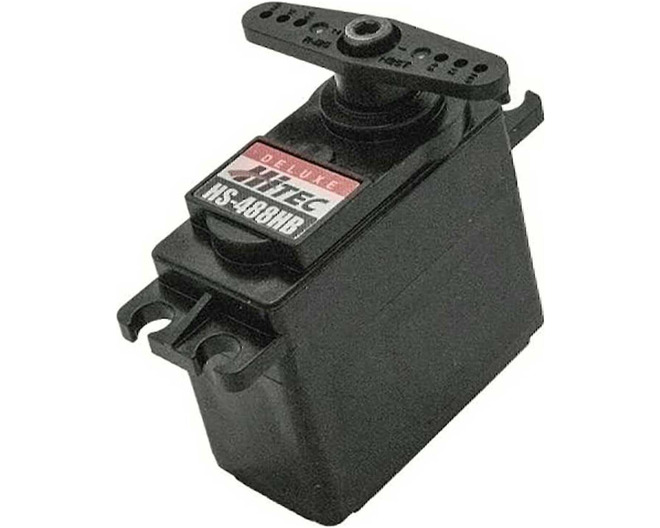

HS-488HB Deluxe Ball Bearing HD Resin Gear 25T Analog Sport Serv $29.99
The HS-488HB is the 25T version of the HS-485HB and updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite gears and high performance circuitry, the HS-488HB offers lots of torque and features excellent centering and resolution.
Applications: Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.
NOTE:
Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs. Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.
FEATURES:
Top Selling Heavy Duty Standard Servo25-Tooth Output Spline
High Impact Karbonite Gears
Top Ball Bearings
Excellent Centering and Resolution
SPECIFICATIONS:
Operating Voltage Range: 3.5 ~ 6.8VVoltage: 4.8V / 6.0V
No Load Speed: 0.22sec/60deg / 0.18sec/60deg
Stall Torque: 4.8kgf-cm (106.93 oz-in) / 6.0kgf-cm (83.32 oz-in)
Peak Efficiency Torque: 1.0kgf-cm (20.8 oz-in) / 1.2kgf-cm (16.7 oz-in)
Standing Current: 8mA / 10mA
No Load Running Current: 180mA / 200mA
Stall Current: 1, 000mA / 1, 200mA
Deadband: 3us / 3us
Connector Wire length: 300mm (11.811 in. )
Connector Wire Gauge: 24AWG
DIMENSIONS:
39.8 x 19.8 x 38.0mm (1.567 x 0.780 x 1.496 in. ) Weight: 45.0g (1.587oz)
Motor Type: Cored Carbon Brush
Bearing Type: 2 Ball Bearing
Case Material: Engineering Plastic
Gear Material: 4 Heavy Duty Gears
Horn Gear Spline: 25T (6.0)
IP-Rating: IP54
Servo Amplifier Type: Analog Controller
